The best hospital lift is not automatically the largest or fastest model. You need to match each lift to patient movement, public access, sterile supplies, food, waste and emergency procedures, then verify dimensions, controls, hygiene, compliance and handover tests before construction fixes the choice.
Key takeaways
- Separate passenger, patient and service traffic before sizing the lift bank.
- Freeze shaft dimensions after comparing bed, stretcher and passenger lift clearances.
- Specify washable finishes, smooth door operation and patient-safe controls.
- Demand emergency power, fire operation documents and statutory approvals before handover.
Choose the lift type around hospital traffic, not building size
A hospital elevator installation in Gurugram should begin with three traffic streams: public and staff passengers, bed or stretcher patients, and service movement. Size the bank from arrival rates, loading time, floor zoning and target waiting time, not total building area. Mixing meals, linen, waste and emergency transfers in one lift creates avoidable conflicts.
| Option | Primary role | When it applies |
|---|---|---|
| Passenger lift | Visitors, staff and ambulatory patients | Use for public floors and routine movement; do not rely on it for beds or soiled materials. |
| Bed or stretcher lift | Beds, stretchers, attendants and clinical equipment | Install between emergency, operating, imaging and inpatient floors; confirm the bed can enter, turn and reverse without striking walls. |
| Service or goods lift | Food, sterile supplies, linen, waste and maintenance loads | Provide a separate route when clean and dirty traffic, kitchen deliveries or waste collection would conflict with patient movement. |
| Fireman’s lift | Emergency responder access and evacuation support | Include it where the approved fire strategy and building rules require protected firefighter operation. |
| Observation lift | Public-facing movement with visibility and architectural value | Choose it for atriums or visitor routes, not as a substitute for a clinical bed lift. |
A machine-room-less traction lift can save construction space, but inspect access to its controller, governor, rescue equipment and isolation points before choosing it. Connect access control or the building-management system through a documented priority matrix, with local manual operation when the network fails.
Compare bed, stretcher and passenger lift specifications before freezing the shaft
Freeze the shaft only after the largest bed, stretcher, trolley and attendant envelope has been measured. A hospital lift installation in Gurugram must compare usable finished car space, not a supplier’s nominal car size or passenger rating.
| Duty | Car, door and load comparison | Speed, shaft and traffic comparison |
|---|---|---|
| Bed lift | Check bed length, turning space, reverse movement, handrails and corner protection. Specify finished internal dimensions, clear door width and rated load. | Reserve a dedicated shaft and protected route for patient movement. Size capacity from bed arrivals, attendant numbers and handling time. |
| Stretcher lift | Test the longest stretcher with oxygen cylinders, monitors and staff inside. Record clear opening, sill detail and usable depth. | Use a separate patient bank where possible; set speed and door dwell to reduce emergency transfer delays. |
| Passenger lift | Compare wheelchair circulation, visitor density and peak staff movement rather than load alone. State car size, clear opening and rated load. | Group shafts by floor zoning and traffic demand. Use a traffic study to set speed, number of cars and waiting-time targets. |
Require every offer to state number of stops, travel height, rated speed, door dwell, re-opening response and whether each dimension is structural, finished or usable. Otherwise, a lift can meet its load rating while rejecting the hospital’s largest trolley.
Separate public, bed-and-patient, and service or soiled-material traffic. Calculate arrival rates, handling times, floor zones and emergency demand; do not size the bank from building area. Confirm machine-room, shaft and emergency-power arrangements together, because a generator connection that cannot start the selected drive leaves the lift unavailable when it matters.
Specify dimensions, hygiene finishes and patient-safe door performance
Specify usable internal space, not the nominal car size. A practical bed-lift design target is about 1,400 by 2,400 mm clear inside the finished car, with at least a 1,200 mm clear door opening; confirm these dimensions against the longest bed, mattress, oxygen cylinder and attendant before freezing the shaft.
Provide a 1,500 mm wheelchair turning circle at each landing, plus enough approach space to reverse a bed without striking walls.
For medical elevator installation in Gurugram, select surfaces that survive trolley impacts and repeated disinfection:
- Use impact-resistant wall panels, rounded or protected corners, corrosion-resistant handrails and a non-slip floor.
- Seal the floor-to-wall joint with a coved skirting; protect the sill, jambs and lower door panels.
- Specify flush lights, sealed control buttons and cleanable fixtures that do not trap disinfectant or fluids.
Use automatic centre-opening doors with a full-height light curtain, sensitive obstruction detection, adjustable dwell time and automatic reopening. Include an attendant door-hold control, but prevent a held door from defeating safety circuits. Test reopening with a trolley and wheelchair, not only by hand.
Witness acceptance tests with empty, half-load and realistic bed loads. Record landing levelling at every stop, clear opening, dwell time, acceleration, jerk, vibration, noise, emergency communication and power-failure recovery. A sensitive patient should experience no abrupt stop, door strike or noticeable trolley movement.
Make emergency power, fire operation and statutory approval part of the design
A contract for hospital elevator installation in gurugram must make approval and energisation documents deliverables, not verbal promises. Name the exact editions and applicability of BIS standards in the tender, then resolve conflicts between the consultant’s specification, manufacturer’s design and statutory directions before construction.
| Requirement | Specify before installation | Evidence before clinical use |
|---|---|---|
| Emergency power | Identify connected lifts, priority transfer, travelling-car response, and generator starting and running capacity | Witnessed power-failure and recovery test |
| Firefighter operation | Provide fire-rated lobbies, protected approaches, shaft protection, firefighter controls, recall logic and emergency power | Fire-authority acceptance and recorded mode test |
| Accessibility | Verify landing and car dimensions, level accuracy, door dwell, controls, alarm, two-way communication and emergency lighting | Accessibility inspection and measured test records |
| Statutory approval | Define Haryana electrical/lift inspectorate inspection, building approval and fire clearances | Inspection certificate, registration or licence and energisation permission |
A medical elevator installation in gurugram is not a firefighter lift merely because it carries beds or ambulances. Keep passenger, patient and service functions defined, and confirm the applicable fire code with the approving authority.
Before clinical use, witness and sign:
- Full-load, overload, levelling and door-clear-opening tests at every landing.
- Ride-quality, alarm, two-way communication, emergency-lighting and access-control tests.
- Firefighter, recall, emergency-power and power-failure recovery scenarios.
- A measured rescue procedure using the installed equipment.
- Approved drawings, test certificates, inspection records, as-built wiring diagrams, operating instructions, maintenance contacts and the final operating permit.
Use the tender and handover process to select a hospital-ready elevator partner
Put statutory compliance and lifecycle support into the tender, not into post-award promises. For hospital lift installation in Gurugram, ask each hospital elevator company in Gurugram for project references, approved drawings, named engineers, inspection history and a sample maintenance contract before comparing prices.
1. Require the bid to identify responsibility for Haryana’s electrical and lift inspectorate, building approval, fire-authority coordination, registration or licensing, final energisation and operating permission. Make approved drawings, test certificates, inspection records, as-built wiring diagrams and the operating permit handover documents.
2. Define the emergency-power sequence jointly with the lift contractor, electrical consultant, fire consultant and generator designer. Record which cars transfer, how priority works, what happens to travelling cars and whether starting current supports the selected drive.
3. Write the AMC around measurable duties: preventive-maintenance frequency, response and maximum restoration times, 24-hour escalation, rescue attendance, remote monitoring, callback limits and service reports. Name coverage for batteries, door rollers, ropes, traction sheaves, fixtures, water ingress and obsolete boards; “comprehensive AMC” leaves disputes unresolved.
4. State who funds and approves modernisation when controls, drives, doors or boards become obsolete. X Pro Elevators is worth evaluating against this matrix rather than a low initial quote, especially for rescue coverage and parts responsibility.

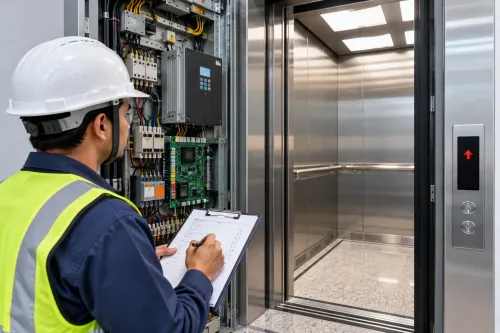

5. Witness commissioning before clinical use: empty and loaded runs, door obstruction and reopening, levelling, alarm and two-way communication, emergency lighting, power transfer, firefighter operation, rescue procedures, ride quality and every lift’s final inspection. Record defects, retest dates and signed acceptance.
